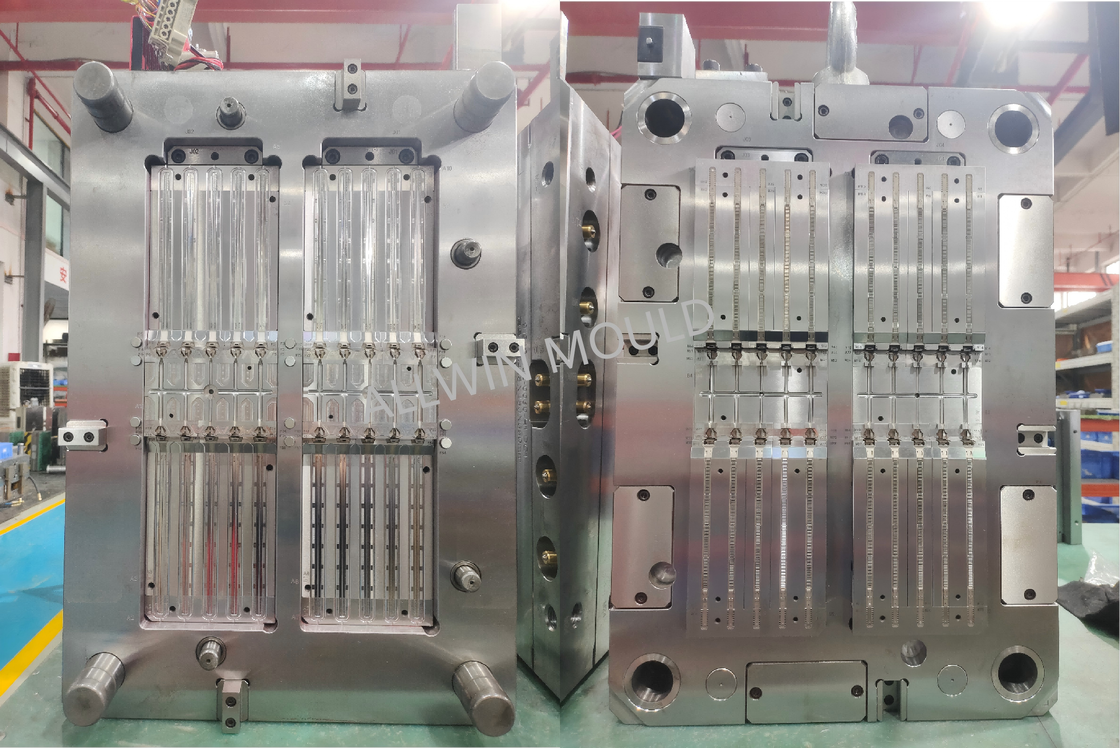

Core Mold Design & Manufacturing Technology

1. Gear Strip Area Precision Machining

1. Adopt high-hardness mold steel (S136 / NAK80) with vacuum heat treatment, high wear resistance for long-term mass production;
2. Gear tooth cavities processed by high-precision CNC wire EDM & grinding machine, tooth tolerance controlled within ±0.005mm;
3. Uniform draft angle on each gear tooth, no undercut, smooth plastic filling without flash or burrs;
4. Optimized runner layout to ensure balanced melt flow along the long strip, prevent shrinkage mark & warpage on gear surface.

2. Product Demolding Optimization Solution (Solve Part Sticking Issue)

1. Install multiple small diameter ejector pins evenly distributed on the cavity side (gear tooth zone & mounting base position);
2. Synchronous ejection design: ejector pins push the whole cable tie strip evenly when mold opens, avoid single-point stress & product bending;
3. Polished cavity surface + reasonable draft angle reduce adhesion force between plastic part and mold steel;
4. The snap mounting head at the end adopts independent sliding core structure, smooth release without damaging the buckle clip structure.

Platform Service Highlights

1. Custom mold development based on customer 2D/3D drawings or samples;
2. Full-process support: mold design → CNC machining → EDM processing → mold fitting & trial molding;
3. Timely mold revision & price update once clients provide final revised drawings;

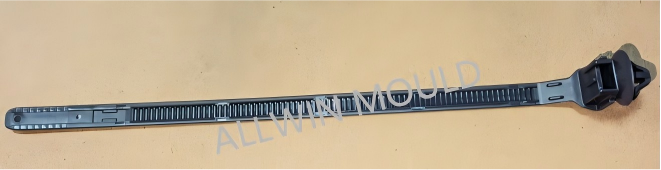

4. Mass production of automotive cable tie fasteners after mold confirmation, strict tensile & aging performance test for auto application.
