12-Cavity PET Preform Injection Mould

Product Overview

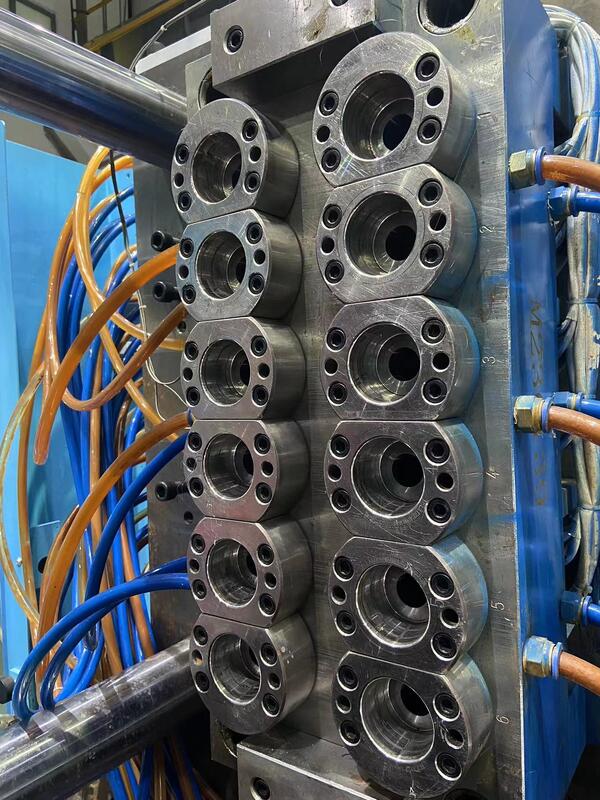

The plate is equipped with 12 independent stainless steel cavity inserts for forming the outer contour, neck thread and shoulder of PET bottle blanks. Each insert has dedicated cooling circuit holes and positioning bolt holes. Multiple blue & orange cooling water pipes are connected to separate spiral cooling channels inside each cavity to control PET crystallization and transparency.

✅ Independent Detachable Stainless Steel Cavity Inserts
  • Cavity insert material: S136H / STAVAX high polish stainless steel, hardness 42–48 HRC, nitrided anti-rust treatment
  • Each cavity is a separate interchangeable insert, convenient for single cavity maintenance, replacement and size modification
  • Inner cavity mirror polished to Ra ≤0.02μm, eliminate haze, silver streaks and flow lines for crystal clear PET preforms

✅ Dual Column Balanced 12-Cavity Layout
2×6 symmetrical vertical cavity layout with optimized hot runner manifold system, equal melt flow distance to every cavity, ensuring consistent preform weight, wall thickness and neck thread precision across all 12 cavities.

✅ Independent Spiral Conformal Cooling Per Cavity
Every single cavity insert is built with full surrounding spiral water cooling channels, separated inlet & outlet circuits. Fast heat exchange shortens injection cycle time and effectively prevents PET material crystallization, white fog and uneven wall thickness defects on bottle shoulder & neck areas.

✅ Precision Thread & Neck Forming Structure
Each cavity insert integrates precise bottle mouth thread forming ring, tight tolerance control to guarantee perfect leak-proof matching with standard plastic caps after blow molding. Standard neck sizes 28mm, 30mm, 38mm, 48mm customizable.

✅ Heavy Rigidity Food-Grade Mould Base
Thickened high-rigidity 718H pre-hardened steel mould base, resistant to high PET injection pressure long-term continuous production. All contact steel meets food contact safety standards.


Full Technical Specifications

Item Standard Specification
Mould Name 12-Cavity PET Bottle Preform Injection Mould
Cavity Layout 2 Column × 6 Rows (12 cavities total)
Main Material Virgin Bottle-Grade PET Resin
Runner System Hot Runner Manifold (Cold runner optional for small batch)
Cavity Steel S136H / STAVAX Stainless Steel
Mould Service Life 800,000 ~ 1,200,000 shots
Applicable Machine 260T–380T Horizontal PET Special Injection Machine
Cooling Design Independent spiral cooling circuit per cavity insert
Surface Finish Mirror polishing Ra ≤0.02μm inside cavity

Competitive Advantages

  1. Interchangeable single cavity inserts reduce maintenance cost and downtime
  2. Balanced hot runner design ensures uniform preform weight deviation ≤±0.02g
  3. Independent spiral cooling greatly improve production efficiency and transparent surface quality
  4. Professional PET mould design experience to solve common defects: crystallization, shrinkage, neck deformation
  5. ISO certified workshop, full dimensional inspection via CMM before delivery

Application Scope of Finished Preforms

  • Mineral water, carbonated soft drink bottle preforms
  • Fruit juice, milk, edible oil PET bottle blanks
  • Cosmetic, skincare, personal care transparent packaging preforms
  • Pharmaceutical & daily chemical plastic bottle preforms


One-Stop Mould Service Process

  1. DFM professional PET preform analysis (crystallization, wall thickness, flow balance)
  2. Full UG 3D mould design + 2D engineering drawing & BOM output
  3. CNC, Wire EDM, Sinker EDM precision machining + mirror polishing
  4. Mould assembly, fitting, on-machine trial & preform weight/thickness testing
  5. Matching blow molding test support, mass injection technical guidance
  6. Lifetime spare parts supply & overseas remote maintenance support
